Start with a published seating chart, a saved ticketed event, and enough reserved-seating allowance for your expected bookings.

Connect categories and ticket prices

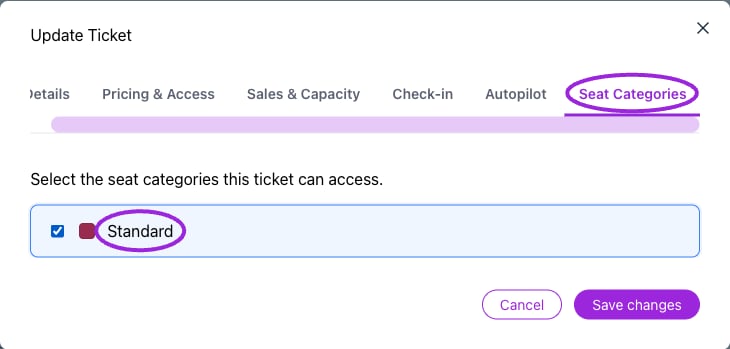

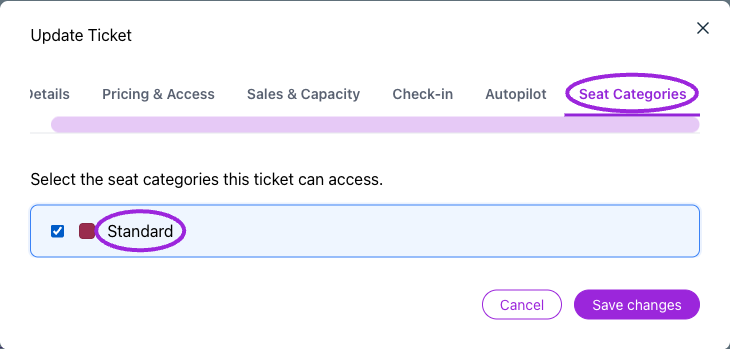

In each ticket’s Seat Categories tab, select every category that ticket can book. Multiple ticket types can share one category; prices are set in Pricing & Access.

In each ticket’s Seat Categories tab, select every category that ticket can book. Multiple ticket types can share one category; prices are set in Pricing & Access.

  1. In the event’s Tickets step, enable Assigned Seating and choose the chart.
  2. Open each ticket’s Seat Categories and select the categories it can book.
  3. Set the ticket price, inventory, sales window, and order limits.
  4. Save the ticket and event, then inspect the public map.
A category groups bookable seats; it is not itself a ticket price. You can assign more than one ticket type to a category, such as Adult and Child. The buyer chooses the appropriate ticket for each selected seat. An Accessible category label identifies that category in the assignment picker; check that your venue labels explain the actual accommodation. The buyer’s Ticket summary lists each selected seat and the ticket prices assigned to its category. Choose a price for each seat. The category name in the seat heading stays the same when the ticket changes; verify the selected ticket and updated total below it.

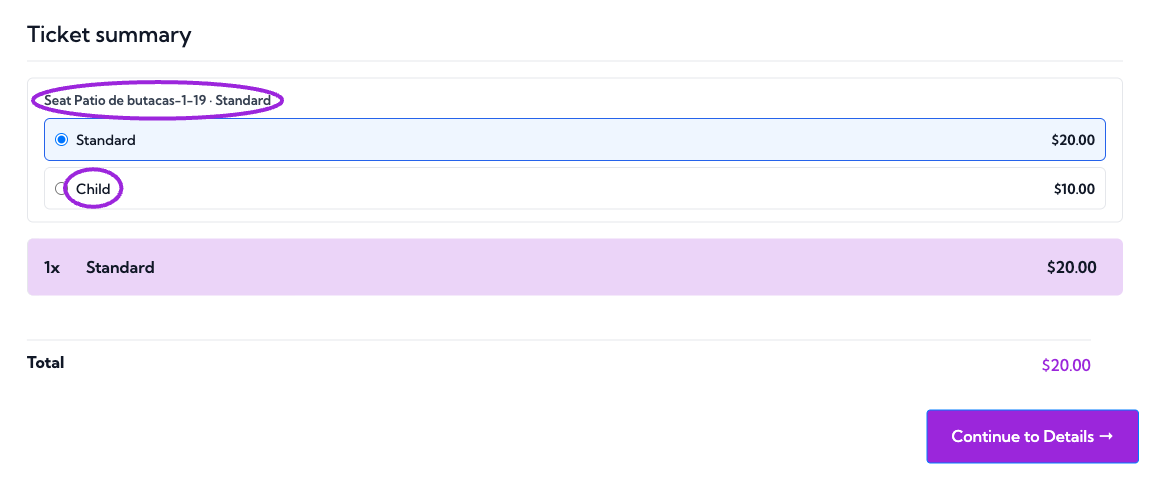

Two prices offered for one seat: Standard at $20 and Child at $10

Standard and Child share the Standard seat category. The buyer chooses the ticket price for this seat.

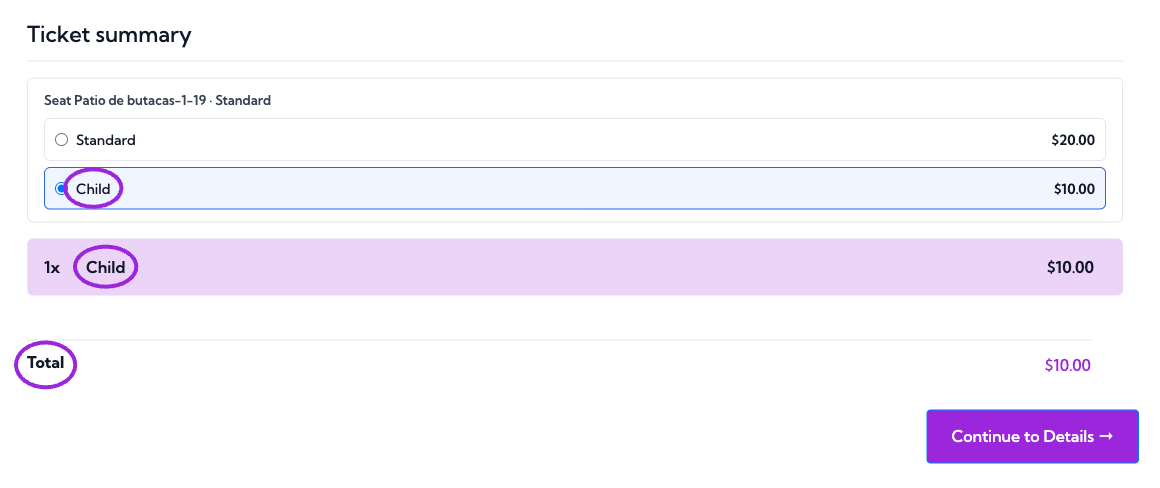

Child ticket selected for the same seat, with a $10 total

Choosing Child updates the ticket summary and total to $10 while keeping the same seat.

For tables, booths, floors, and zones, see advanced layouts. Whole-table selection must match the unit you intend to sell.

Buyer selection

The buyer chooses the occurrence, opens its seating map, selects available seats or other bookable objects, and reviews the ticket type and price. The map can expand for easier selection. Closing the expanded map returns to the surrounding checkout.

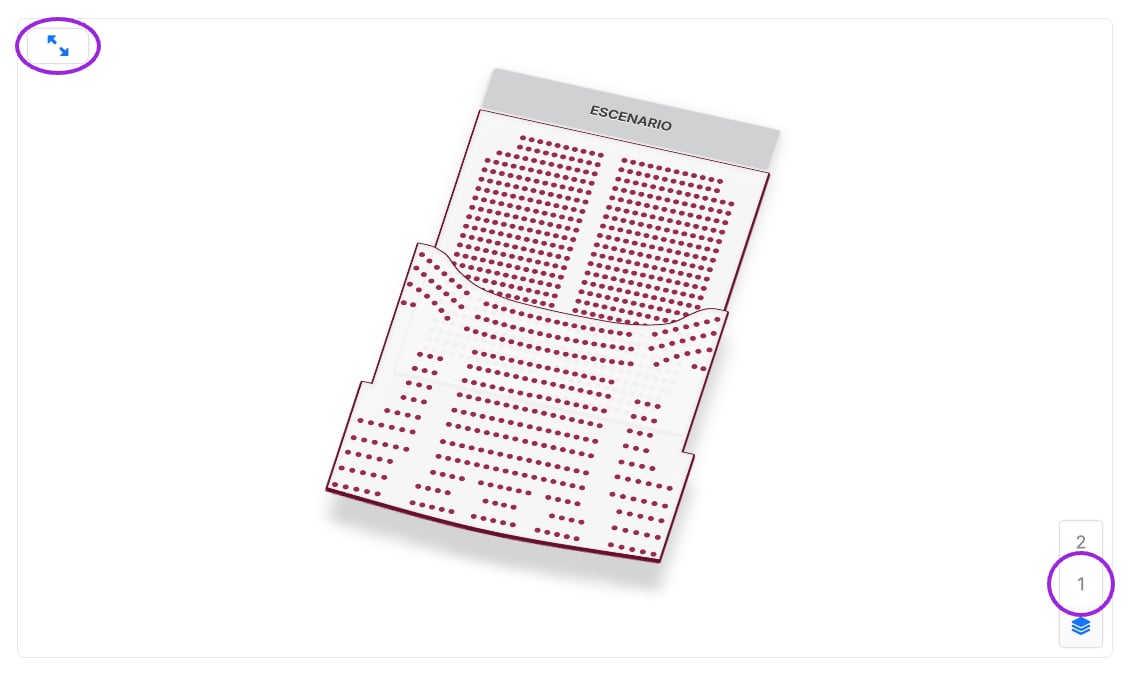

Buyer seating map with floor 1 and the expand control highlighted

Choose a floor and use the expand control to navigate the venue.

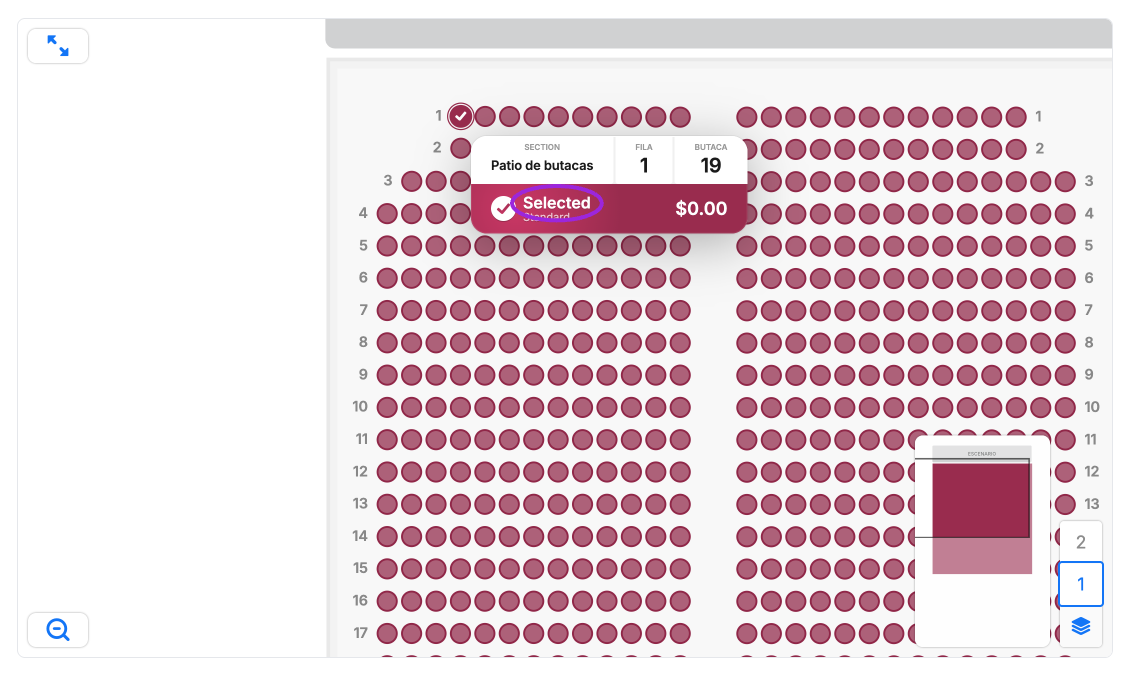

Buyer map showing selected seat Patio de butacas-1-19

A check mark and Selected identify the seat held for this checkout.

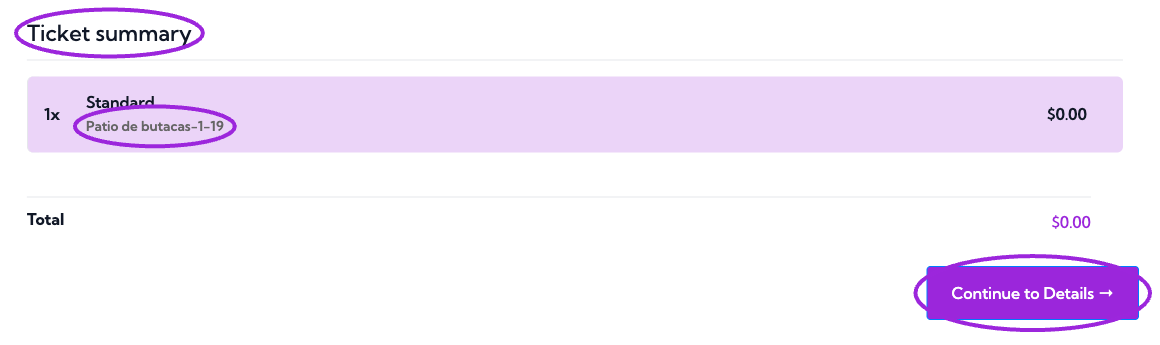

Ticket summary with the selected seat and Continue to Details highlighted

Review the ticket type, exact seat label, and total before entering attendee details.

Selected seats are held temporarily during checkout. A completed purchase is required to confirm admission. If a selection expires or becomes unavailable, refresh availability and choose again; do not treat an old cart as a booking. Check the summary before payment: occurrence, section/row/seat labels, category, ticket type, quantity, and price. On Shopify, use the Ticket Selector and confirm that the seat assignment survives the Shopify checkout handoff.

Show the remaining seat hold time

Ordinary tickets use a separate optional ticket reservation. In a mixed cart with ordinary reservations, checkout displays the earliest known relevant deadline. Expired seats must be selected again or removed; the ordinary-ticket availability action cannot renew them. Open Design → Widget, select the widget, then enable Show seat hold countdown in Quick Settings. The same switch is under All Settings → Display → Checkout & payment. It is off by default. See the Quick Settings steps. When enabled, Seat hold expires in and the remaining minutes and seconds appear above the seating map once a hold session starts. The time follows that session’s actual expiry, including time spent choosing seats. Adding a seat or hiding and showing the countdown does not restart the timer. Returning from a background tab updates the remaining time. Customize the sentence under All Settings → Text → Checkout → Seating → Seat Hold Countdown Text, keeping {time} wherever the remaining time should appear. The default translates into the visitor’s supported language when Automatic translation is enabled. Custom wording stays as entered; restore Seat hold expires in {time} to use the translated default again. See text settings.
Buyer seating chart with the remaining seat hold time displayed above the map

The countdown appears above the seating chart while the buyer chooses seats. The displayed time belongs to the current hold session.

Mobile seating selection with the seat hold countdown above the map

The remaining time stays above the embedded map on a narrow screen.

Turning this display on or off does not change Seat Hold Time in Minutes under Settings → General. Its default remains 15 minutes. When the hold expires, the existing reservation-expired message asks the buyer to refresh and choose seats again. The countdown is shown on the seating selection screen; it does not add a separate timer to later payment screens. A read-only map or a session without expiry information does not show a countdown.

Expand the map on mobile

Use the expand control in the map’s top-left corner. Choose a floor, then pan and zoom to individual seats. The top-left close control returns to checkout; check the summary and Continue button after returning.

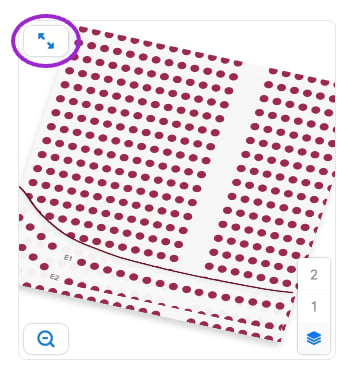

Mobile seating map with the expand control circled

The expand control opens the map across the available screen.

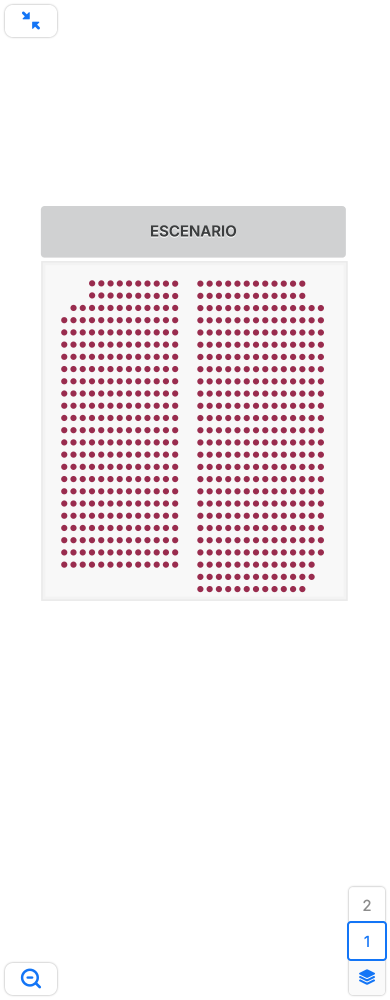

Expanded mobile seating map showing Main floor, close, floor selection, and zoom controls

The expanded view retains floor navigation and zoom. Close it using the top-left control to return to checkout.

Availability and selection limits

The map applies available ticket inventory, order limits, and the site’s remaining seating allowance. With ticket-first selection, the chosen ticket quantity also limits the number of seats. The checkout still checks each ticket’s rules when several ticket types share one category. The widget can show low-stock and sold-out notices, unmet minimum-order quantities, or a seating selection limit. Resolve the notice before continuing. If reserved seating is temporarily unavailable because the site has no seating allowance, the map is read-only and shows an explanatory message. The organizer can review usage and seating credits. Configure the seat-hold duration under Settings → General; the allowed range is 1–120 minutes. Expired holds require the buyer to refresh and choose seats again. Deselecting a seat removes it from the current selection. An unavailable seat might be sold, blocked, or held by another checkout; its appearance alone does not identify an attendee.

Series and date-specific seating

A series chart automatically applies to dates and times using event defaults, including new dates. Each occurrence keeps separate seat availability. Retry seating setup appears when setup needs attention; resolve the reported dates before selling.

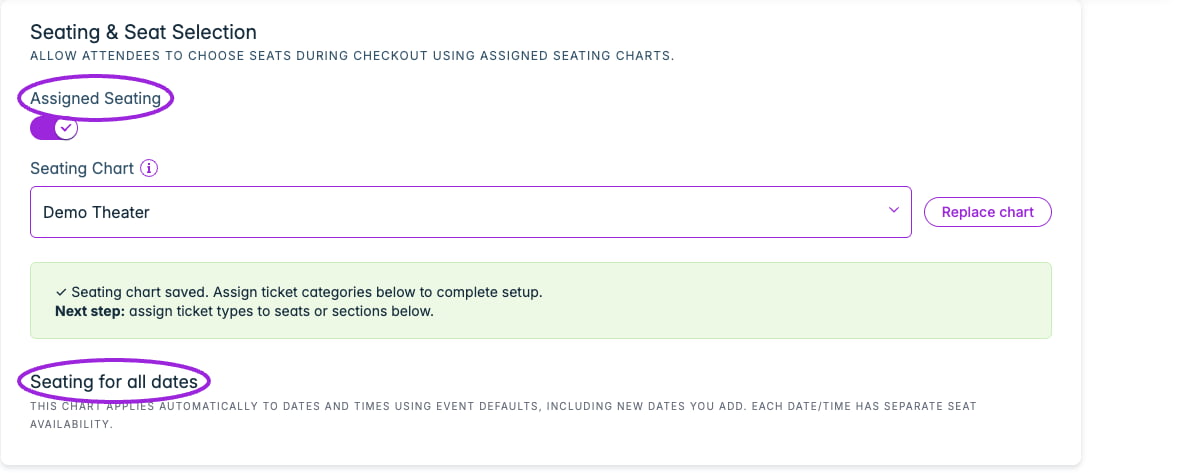

Assigned Seating with Seating for all dates highlighted

The series chart applies automatically to dates and times using event defaults. Each occurrence has separate availability.

At date level, review Uses event seating versus Custom seating for this date. Use event seating restores the parent chart. Read the confirmation: it clears that date’s category mappings, and dates with booked seats cannot switch through this action.

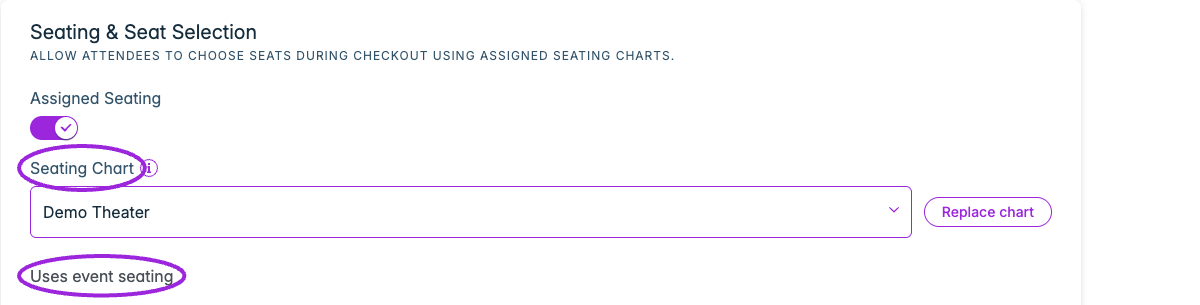

Occurrence seating chart labeled Uses event seating

An occurrence using the parent chart is labeled Uses event seating.

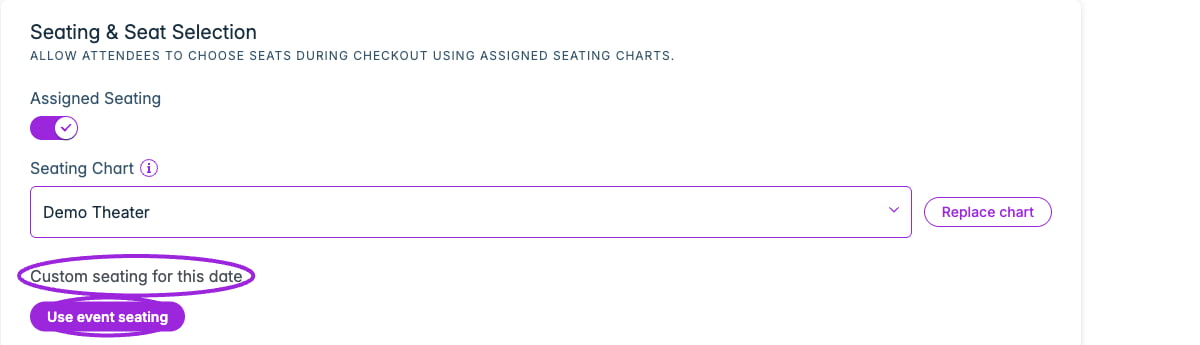

Custom seating for this date and Use event seating action highlighted

A custom date chart exposes Use event seating. Read its confirmation before returning to inheritance.

Replace a chart with existing bookings

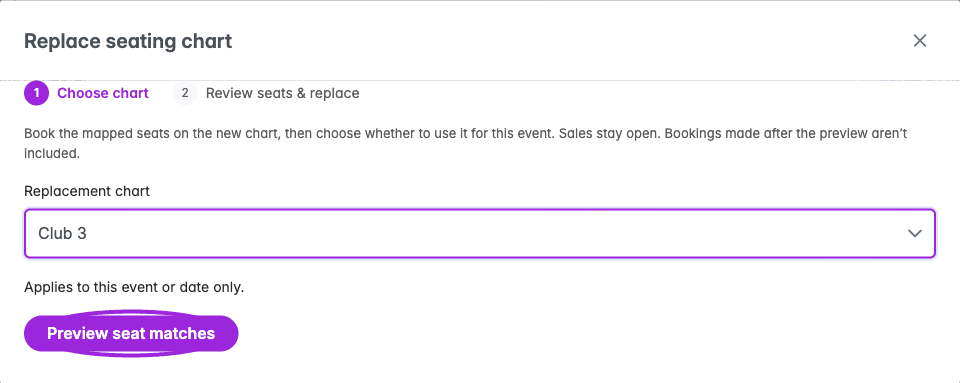

Replace chart opens a preview workflow. Choose a published replacement and preview the seat matches before booking or activating it.

Replace chart opens a preview workflow. Choose a published replacement and preview the seat matches before booking or activating it.

  1. In Tickets → Seating & Seat Selection, choose Replace chart.
  2. Choose another published chart containing individually assigned seats and select Preview seat matches. Whole-table and general-admission layouts need separate handling; the preview reports this restriction. A series replacement includes dates using event seating; dates with custom seating keep their own charts.
  3. Review Review the new seats. Seats with the same label are matched automatically. Resolve unmatched seats, inspect changed labels and any attendee records that will not move, and check every affected occurrence.
  4. Under Match ticket categories, map each current category to a category on the replacement chart. Ticket prices stay the same. Review any move into a different ticket category.
  5. Read the credit total and confirmation. Every booked seat moved uses a seating credit, including booked blocks and seats without an attendee. Retrying does not charge the same replacement seat twice; restoring the original chart does not refund used credits.
  6. Book mapped seats reserves the reviewed seats on the replacement chart. The event still uses the original chart until you choose Use new chart.
  7. Inspect the final result and chart history. Verify affected attendee seat labels and the public map.
Sales remain open during this workflow. Bookings made after the preview are not copied automatically. No emails are sent by chart replacement; notify affected attendees separately when appropriate. Restoring the original checks for newer bookings before it can proceed.

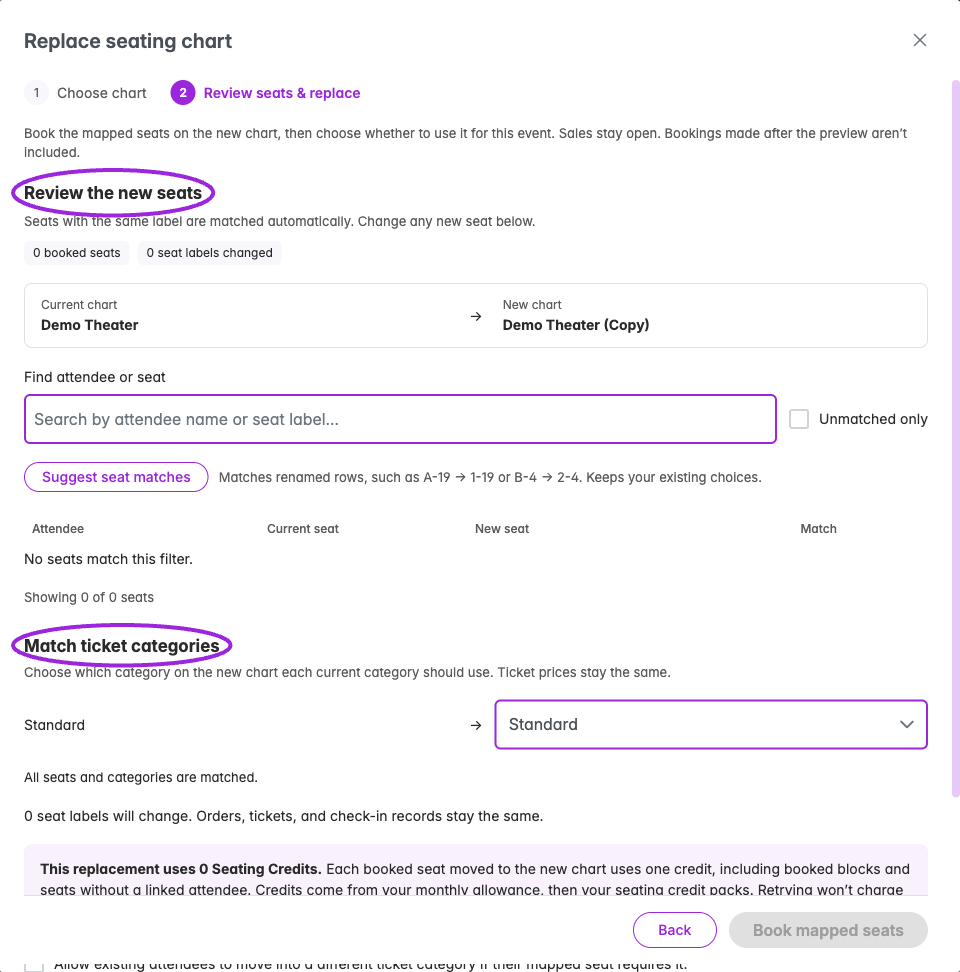

The replacement review shows matched seats and category mapping before any booking. This empty demo event has no seats to move; a sold event lists its existing bookings here.

The replacement review shows matched seats and category mapping before any booking. This empty demo event has no seats to move; a sold event lists its existing bookings here.

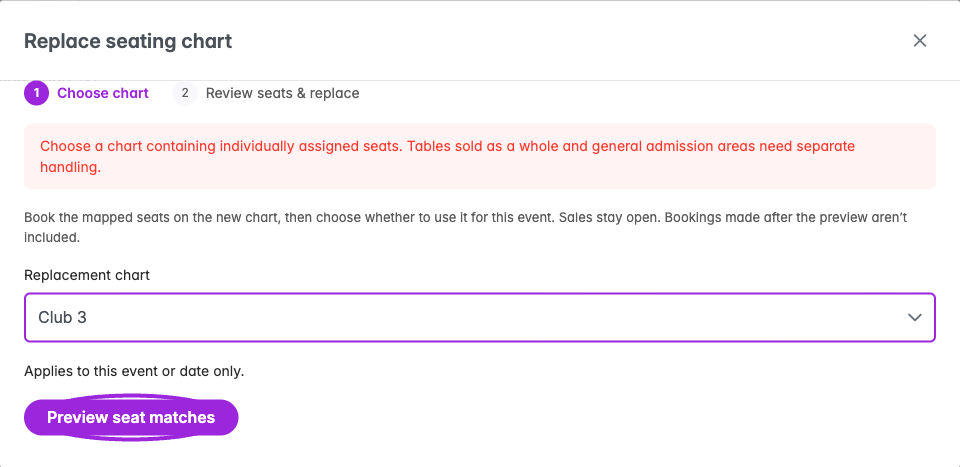

The replacement preview checks the target layout. Whole-table and general-admission layouts need separate handling; choose a chart containing individually assigned seats.

The replacement preview checks the target layout. Whole-table and general-admission layouts need separate handling; choose a chart containing individually assigned seats.

Attendee seating dashboard

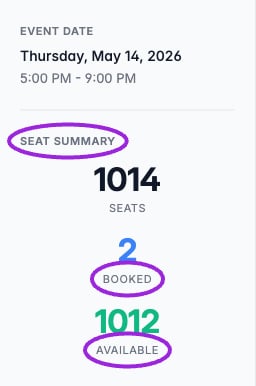

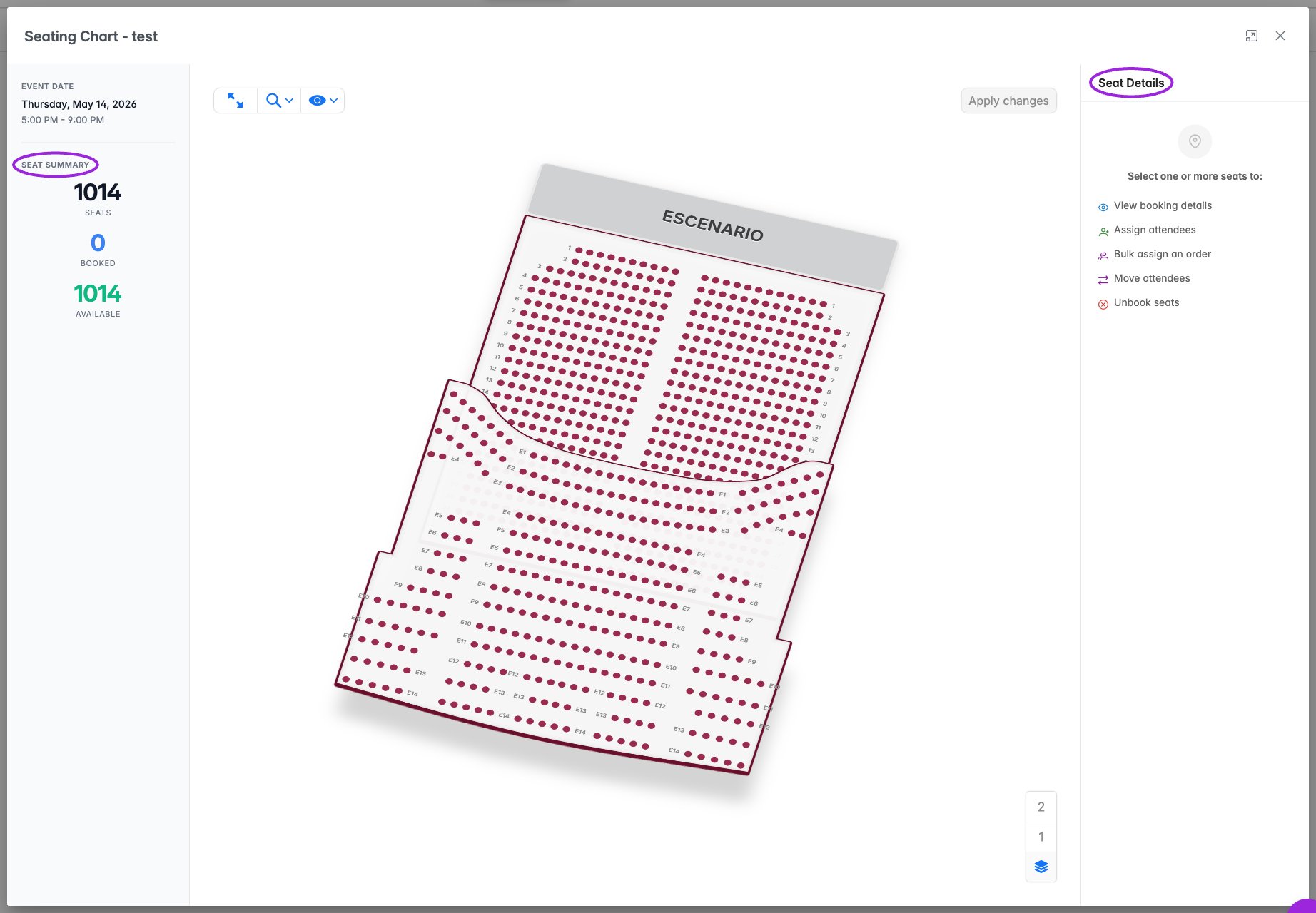

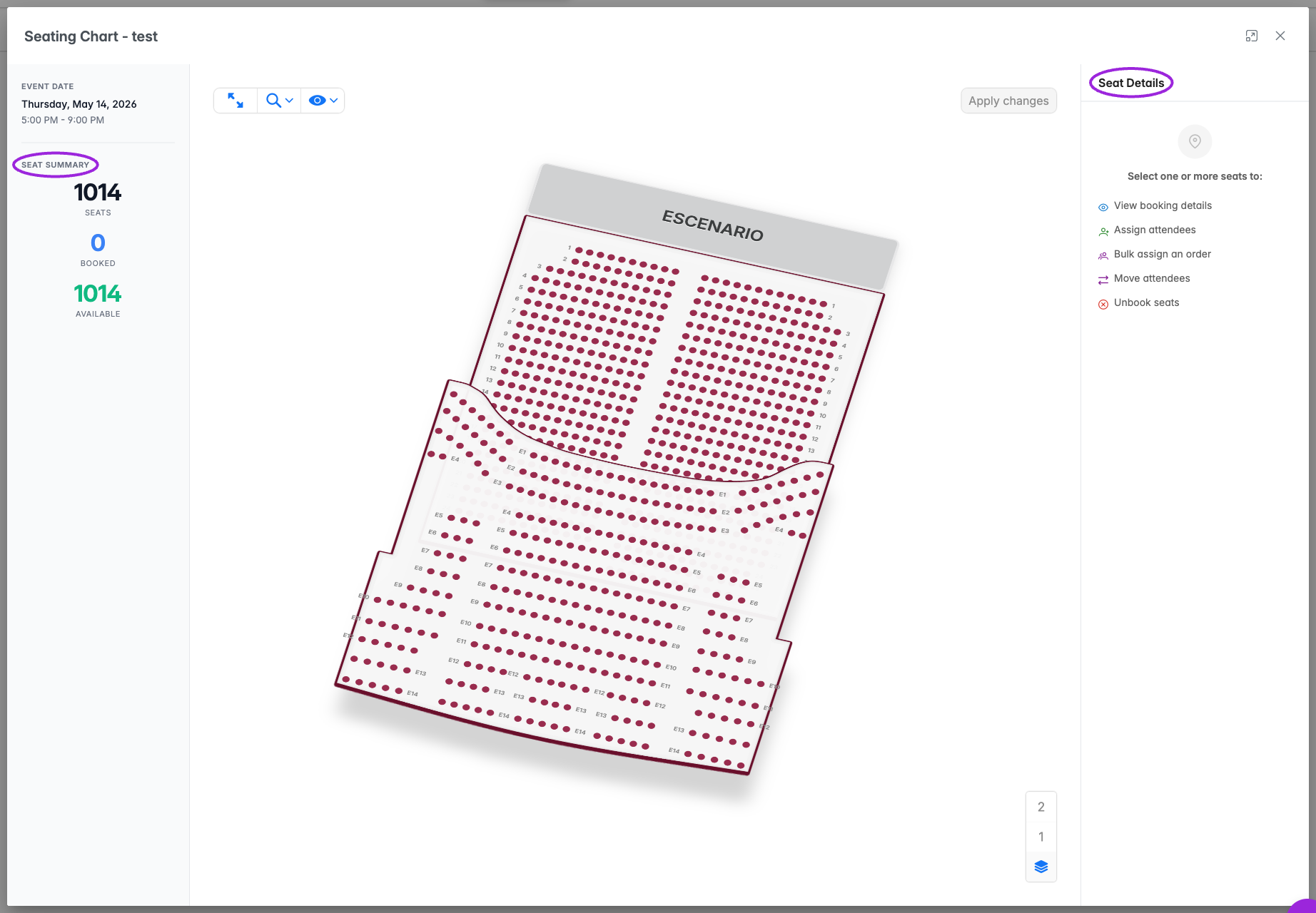

Open Attendees → Seating Chart for the event. Use Attendee dashboard seating chart modal for the full organizer workflow, screenshots, occurrence selection, and the meaning of Available, Assigned, and Blocked.

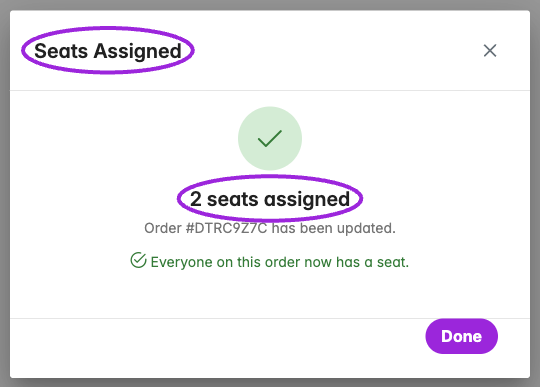

Assign seats to existing attendees

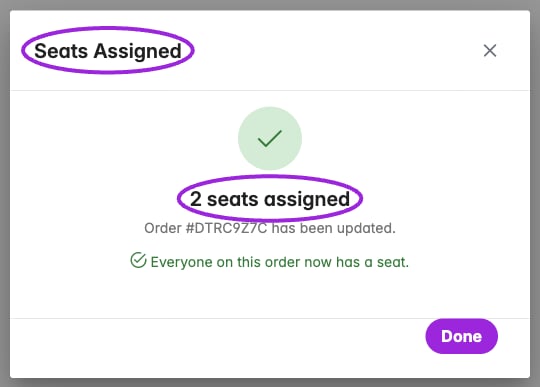

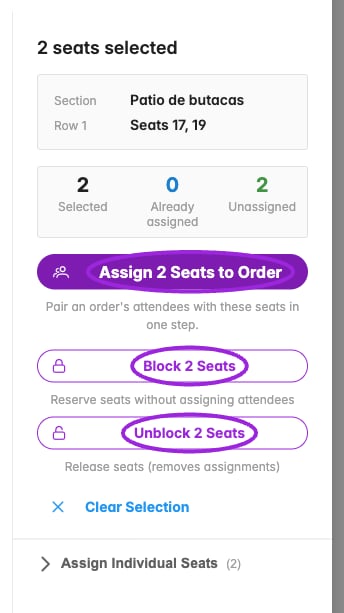

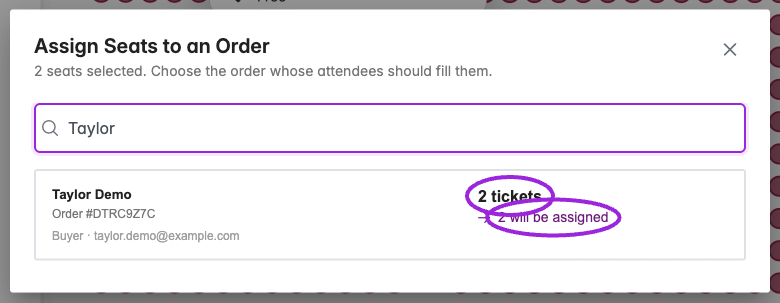

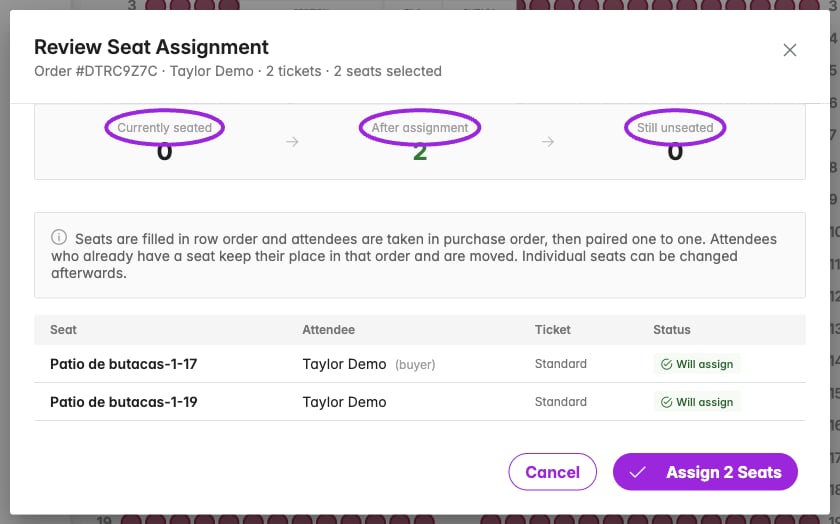

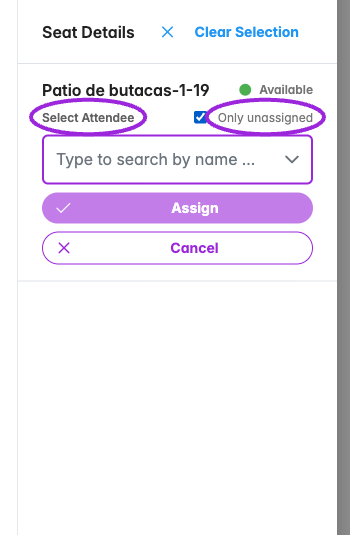

Use individual assignment and reassignment, order assignment, or standing general admission. The modal assigns existing registrations; Add Attendee creates a registration first.

Block, unblock, and unbook

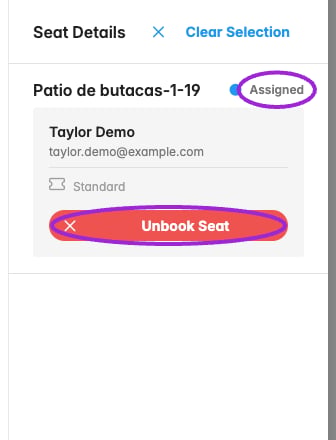

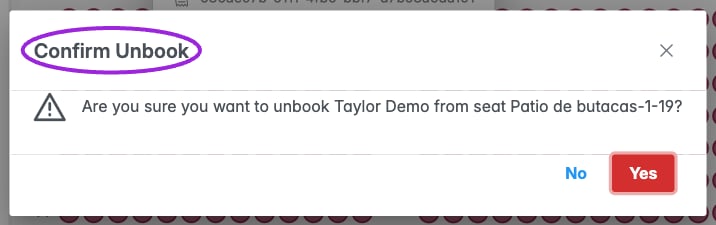

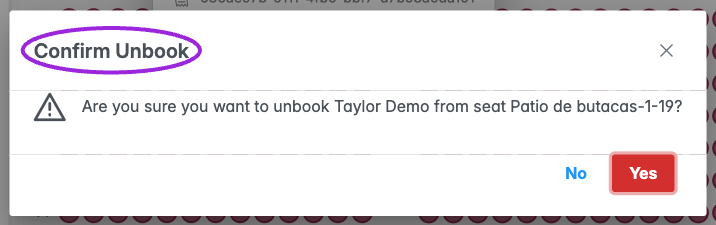

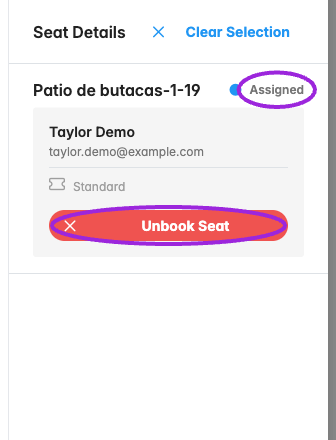

See Block, unblock, and unbook for single-seat and bulk actions, confirmation behavior, and how releases affect existing attendee assignments.

Capacity and unavailable maps

Reserved-seating allowance is separate from event capacity and ticket inventory. A site can have tickets left but be unable to accept more seat reservations because its seating allowance is exhausted. The map can become view-only or show a seat-limit/unavailable message. Review the account’s reserved-seat usage and any Add Reserved Seating Pack action. Do not increase ticket inventory to solve a seating-allowance problem. The attendee-facing messages can be customized in Design → Widget → Text → Checkout → Seating.

Check before selling

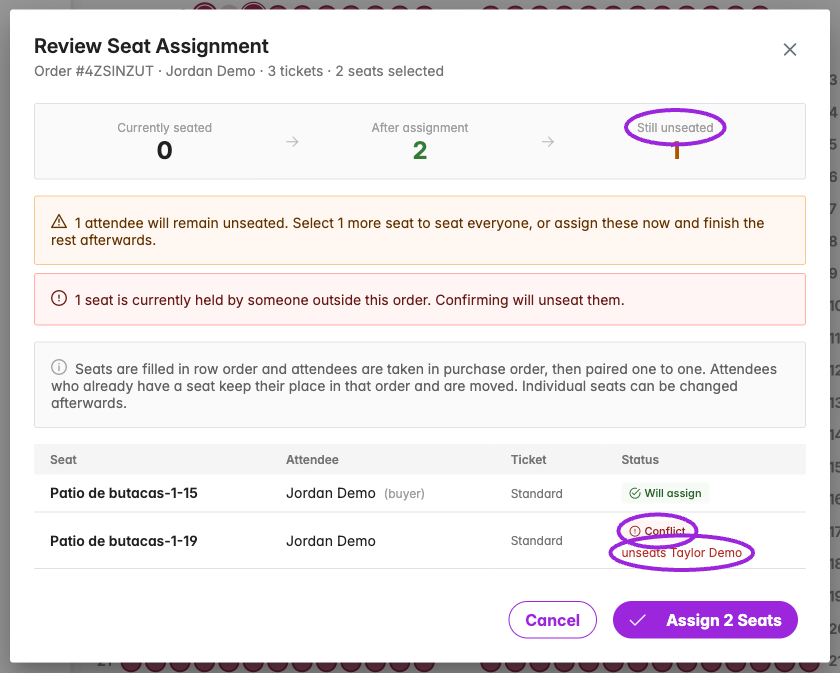

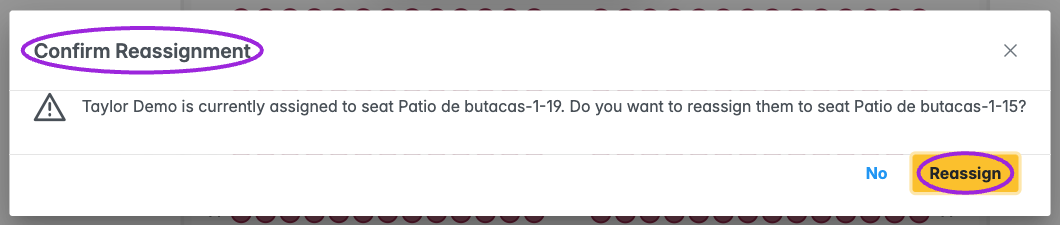

Test one seat in every category, multiple ticket prices in the same category, a sold/held seat, order limits, two occurrences, and the mobile expanded map. Confirm an actual completed booking shows its seat in attendee records and ticket output. For a reassignment, verify both the moved attendee and anyone displaced.

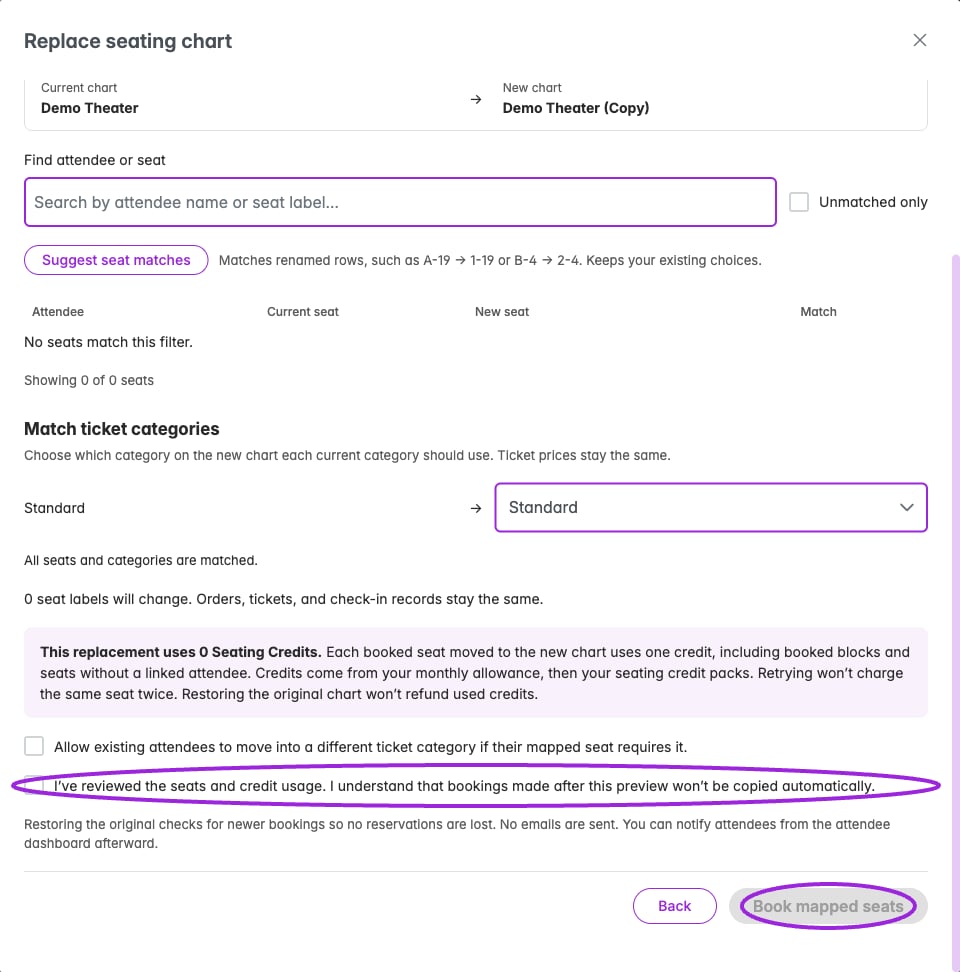

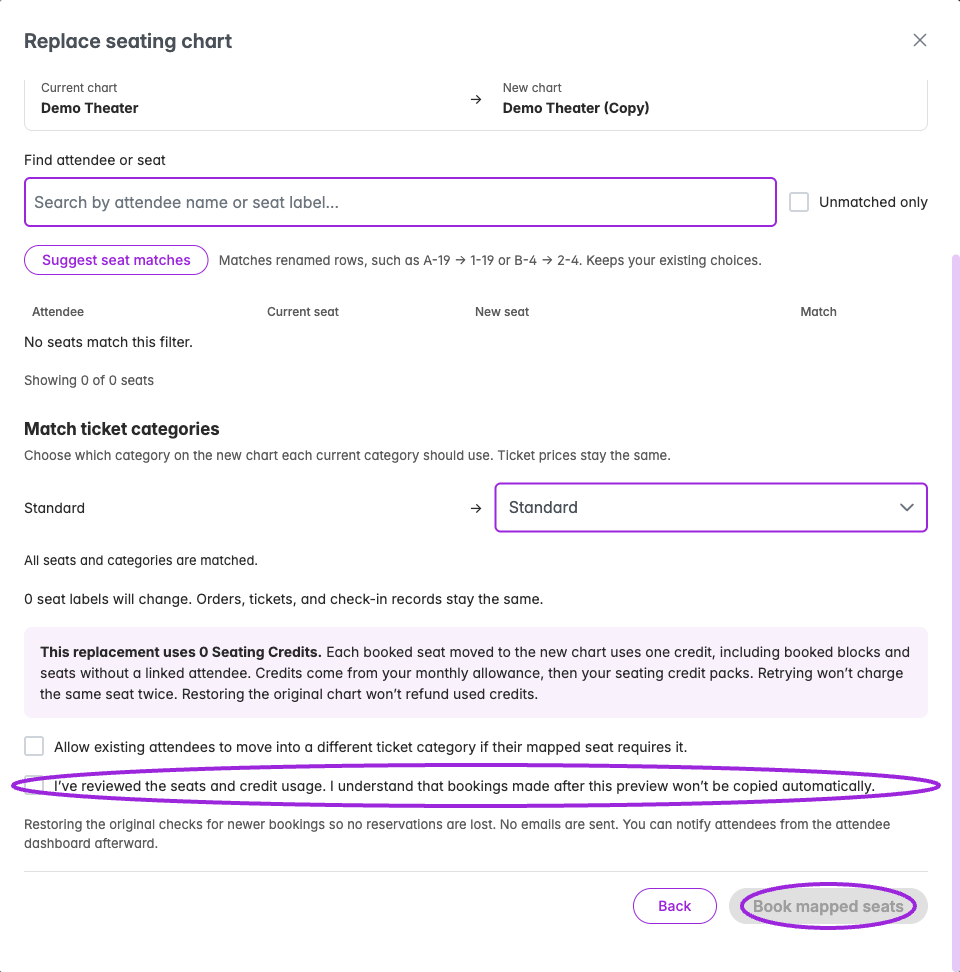

Review credits before booking

Review category matching, Seating Credit usage, and the acknowledgement before Book mapped seats. This empty Demo event requires 0 credits; the replacement has not been booked or activated.

Review category matching, Seating Credit usage, and the acknowledgement before Book mapped seats. This empty Demo event requires 0 credits; the replacement has not been booked or activated.
